Cable Hardware

Cable Hardware for Reliable Cable Installation & Network Deployment

Cable hardware provides the mechanical support, anchoring and tension control required to secure cables across different installation environments.

Four Clamp Solutions for Different Procurement Needs

Aerial Drop Cable Wire Clamp

Designed for securing aerial drop cables at poles, buildings and other support structures.

Fiber Optic Drop Cable Clamp

A general solution for securing fiber optic drop cables in FTTH/FTTx networks.

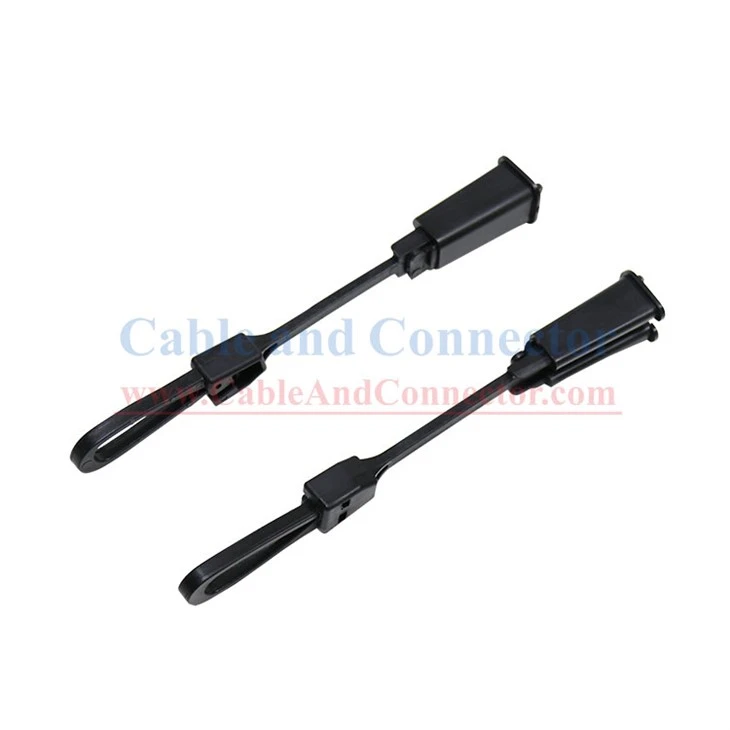

Plastic Drop Wire Tension Clamp

A lightweight option where installation efficiency and cost control are important.

FTTH Drop Cable Anchor Clamp

Designed for anchoring the drop cable at a fixed termination point.

Key Parameters

Parameter	What It Means	Why It Matters in Selection
Applicable cable Ø range	Width × thickness (and messenger size) the clamp is built for	Outside this range it slips, won’t fit, or crushes the cable
Rated Breaking Load (RBL / MBL)	Maximum tensile load in a pull-to-failure test (kN)	Must clear cable RTS/UTS × design safety factor
Slip load	Load at which the cable starts to move inside the clamp	Good practice: slip ≥ 90–95% of cable RTS/UTS
Materials & coating	Stainless / PA66 / galvanized; surface protection	Drives corrosion resistance in your environment
Hardware Configuration	Hook, wire, wedge, anchor or other structural configuration	Must match the cable structure and mounting point
Cable Compatibility	Flat/round profile, cable dimensions and strength member configuration	Correct matching reduces installation problems and cable damage

How to Choose the Right Clamp

Cable Compatibility:The clamp must fit the actual drop cable. Confirm flat/round cable, cable dimensions/diameter, cable construction, messenger/strength member, required gripping method, and compatible hook/bracket/anchor point. A mechanically strong but poorly matched clamp can cause installation problems.

Tensile / Breaking Load:For aerial installations, the clamp needs sufficient capacity for expected cable tension. MBL values for FTTH clamps typically range from ~0.7 kN to 2 kN or more, depending on design. Requirements should be based on cable, span, installation method, and project spec.

Environmental factors:For coastal, humid, or chemically aggressive environments, pay particular attention to corrosion resistance and material grade.

Materials & Environmental Durability

Different cable hardware materials are suitable for different purchasing and installation requirements.

Material	Best for	Key Consideration
Stainless steel body + bail	Outdoor drops, long spans, coastal & high-UV	Strong mechanical and corrosion resistance for demanding applications
PA66 / engineering nylon (UV option)	Indoor drops, short runs, controlled environments	Lightweight and cost-efficient; UV grade should be confirmed for outdoor use
Combination (stainless + polymer)	Mixed indoor/outdoor across buildings	Combines different material advantages and can simplify SKU management
Galvanized steel (hook patterns)	Cost-sensitive aerial hardware	Coating durability should be verified for coastal or industrial environments

Solving Common Cable Hardware Procurement Problems

Cable Slippage or Sagging:Select hardware with appropriate gripping geometry and slip-load performance. For applicable projects, slip load can be evaluated against approximately 90–95% of cable RTS/UTS.

Cable Jacket Damage:Match the hardware profile to cable dimensions and construction, considering bend radius and crush limitations to avoid excessive local pressure and attenuation.

Outdoor Aging:Choose stainless steel or UV-stable engineering polymers according to the required environment and service life to prevent cracking or deterioration.

Mixed SKUs During Large Projects:Support clearly identified SKUs, combination solutions, and customized packaging to simplify project rollout, warehouse management, and replenishment.

Compliance and Quality Documentation:Material certificates, batch test reports, and third-party pre-shipment inspection can be provided per project requirements.

Customization

Different network operators may have their own technical specifications. Customization can be discussed for:

Cable dimensions, clamp structure, material (stainless-steel grade or polymer), wire length, hook configuration, tensile requirement, color, logo, packaging, and private-label requirements.

For large projects, customization should be validated through samples and technical drawings before mass production.

Cable Hardware Quality Verification

Plastic Drop Wire Tension Clamp suppliers

For international and large-scale procurement, consistent quality between samples and mass-production batches is critical.Our quality verification process covers the key characteristics of cable hardware:

Material Traceability:Components such as bodies, wires, hooks and wedges are manufactured using confirmed and traceable materials.

Dimensional Accuracy:Product dimensions are controlled according to specified cable profiles, with technical drawings available for verification.

Tensile Performance:Breaking-load performance is tested and documented according to applicable recognized testing methods.

Environmental Durability:Where applicable, UV resistance, temperature cycling, corrosion resistance and aging performance are evaluated for outdoor deployment.

Installation Reliability:Products are checked for correct installation according to standard installation procedures.

Pre-Production Sample Approval:Samples can be provided for cable-fit, installation and mechanical verification before mass production.

Batch Test Documentation:Lot-specific test reports and material certificates are available according to the product and project requirements.

Packaging & Shipping

Cable hardware is compact and suitable for high-volume transportation, making efficient packaging important for distributors and project buyers.

Packaging

PE bags for individual/component protection
Inner boxes for SKU separation
Export cartons
Palletized cartons for larger orders
Customized labeling and packing quantities

Shipping

Sea Freight: Cost-effective for bulk cable hardware and large infrastructure projects.
Air Freight: Suitable for urgent samples and smaller quantities
Rail Freight: Available for selected China-Europe routes
Road Freight: Suitable for domestic and regional delivery

Certifications & Quality Documents

The certification requirements may vary depending on the target market, product configuration and customer specifications. We can provide the following materials:

ISO 9001 — Quality Management System
RoHS — Restriction of Hazardous Substances
REACH — Chemical substance compliance
CE — Where applicable to the product/application
Material Certificates
Test Reports
UV / Aging Test Reports
Tensile Test Reports

FAQ

Q: What cable hardware do you supply?

A:Our current cable hardware solutions include aerial drop cable wire clamps, fiber optic drop cable clamps, plastic drop wire tension clamps and cable drop anchor clamps. Different configurations are available according to cable dimensions, installation method, material and mechanical requirements.

Q: How do I choose the right cable hardware?

A:Start with the cable type and dimensions, then confirm the installation method, required tensile performance, environmental conditions and compatible mounting hardware.

Q: What cable sizes can your hardware support?

A:The applicable cable size depends on the specific hardware model and structure. Buyers should provide the cable diameter, width/thickness or cable drawing so that compatibility can be confirmed before quotation or sampling.

Q: What tensile load should I specify?

A:There is no single tensile value suitable for every cable installation. The required value should be evaluated according to the cable, span, installation method and project specification.For reference, applicable commercial FTTH-related clamp designs may have MBL values of approximately 0.7 kN to 2 kN or higher, depending on design.

Q: Should I choose stainless steel or plastic cable hardware?

A:Plastic/engineering nylon can be suitable where lightweight construction and cost control are priorities. Stainless steel is generally more suitable for demanding outdoor environments where mechanical strength and corrosion resistance are important.The final choice should be based on the installation environment, cable requirements and expected service life.

Q: Can your cable hardware be used outdoors?

A:Yes, provided the selected model and material are suitable for the intended outdoor environment.Before approval, buyers should confirm UV resistance, corrosion resistance, temperature range and required mechanical load.

Q: Can I request samples before placing a bulk order?

A:Yes. Samples can be requested for cable-fit, installation and mechanical verification before mass production. For large network projects, sample approval is recommended before confirming the production order.

Q: Can you customize cable hardware?

A:Yes. Customization can cover material, dimensions, cable compatibility, tensile requirements, hook configuration, wire length, branding, packaging and private-label requirements.For large projects, technical drawings and samples should be approved before mass production.

Q: Can you provide material and tensile test reports?

A:Yes. Test documentation can be provided according to the specific product model and project requirements. Buyers should confirm the required testing standards and acceptance criteria before production.

Q: What are your payment terms?

A:For standard orders, the payment term is 30% T/T deposit before production and 70% balance before shipment.For qualified customers or large-volume projects, L/C at sight can also be discussed. Final payment terms are confirmed in the sales contract before production.

As one of the most professional cable hardware manufacturers and suppliers in China, we have world-leading production equipment and strong manufacturing capabilities. Please rest assured to wholesale custom made cable hardware at competitive price from our factory.
