Fast Connector
Fiber Optic Fast Connector for Fast Field Termination
Fiber Optic Fast Connector is designed for terminating optical fibers quickly without the conventional fusion-splicing process. By combining a pre-polished ferrule with a mechanical alignment or clamping structure, it enables installers to complete fiber connections directly at the installation site.
Fast Connector Options for Different Fiber Interfaces

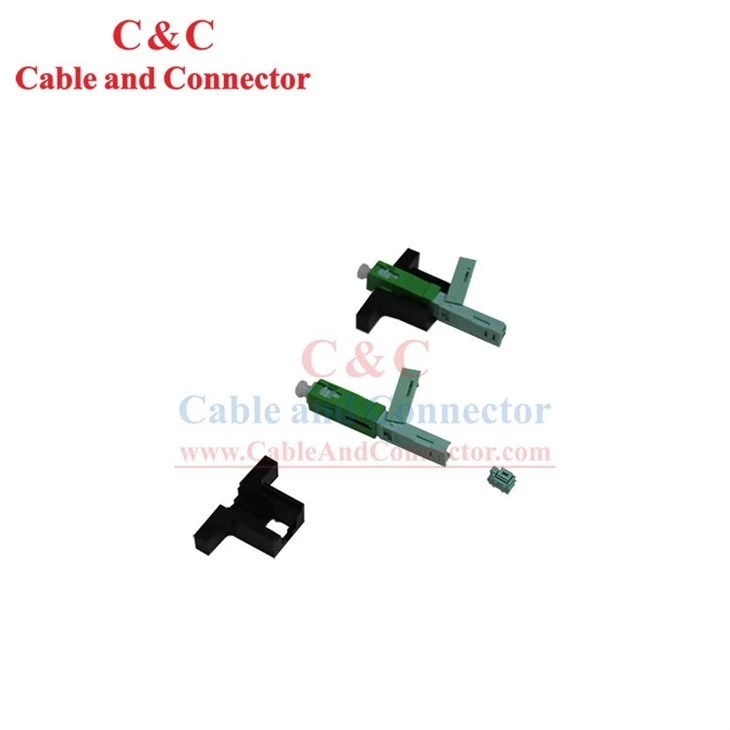

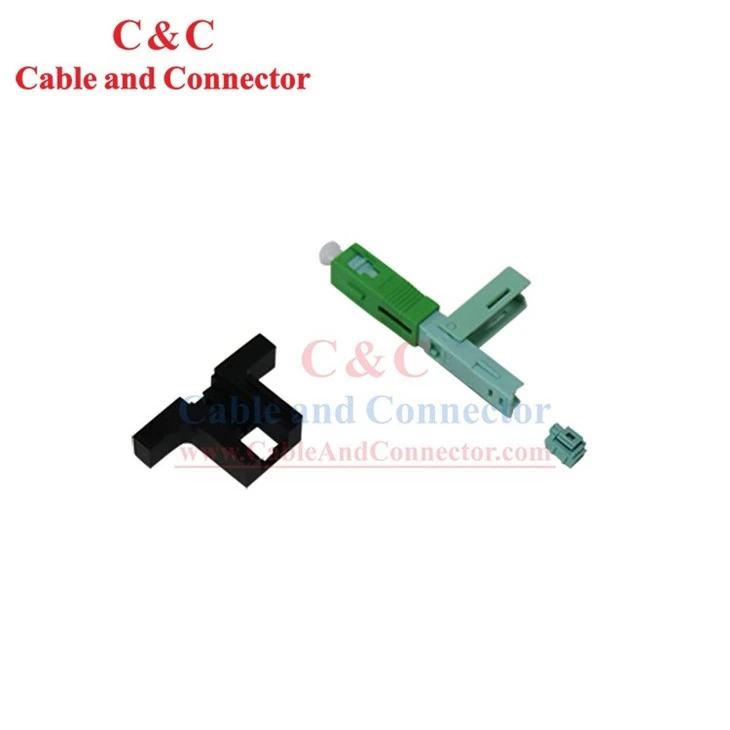

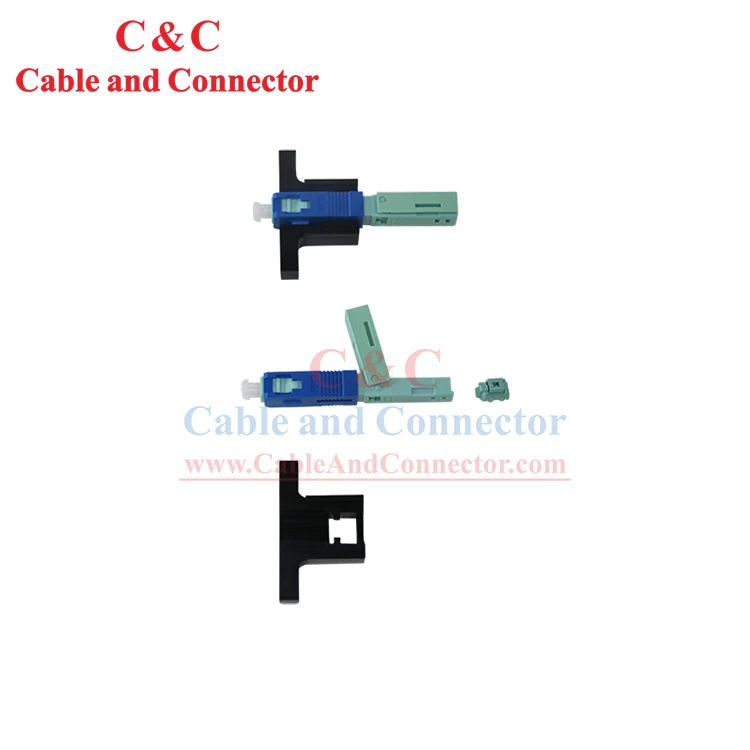

SC APC Fast Connector
SC APC Fast Connectors use an angled physical contact interface and are suitable for applications where lower back reflection is required.

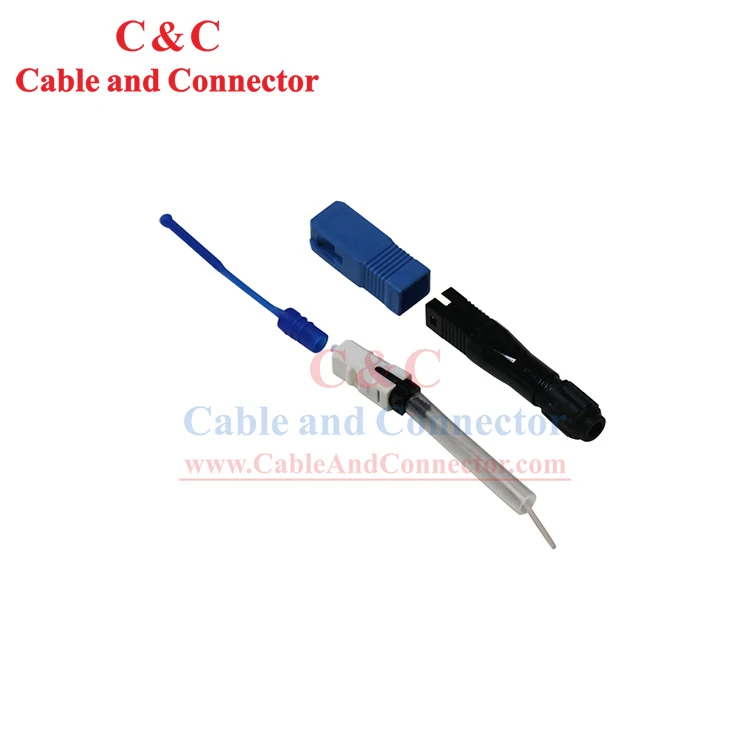

SC UPC Fast Connector
SC UPC Fast Connectors provide a UPC-polished interface for compatible fiber optic equipment and are suitable for general optical communication and access-network installations.
SC PC Fast Connector
SC PC configurations provide a physical-contact interface for compatible optical fiber systems and can be selected according to the equipment interface and network specification.

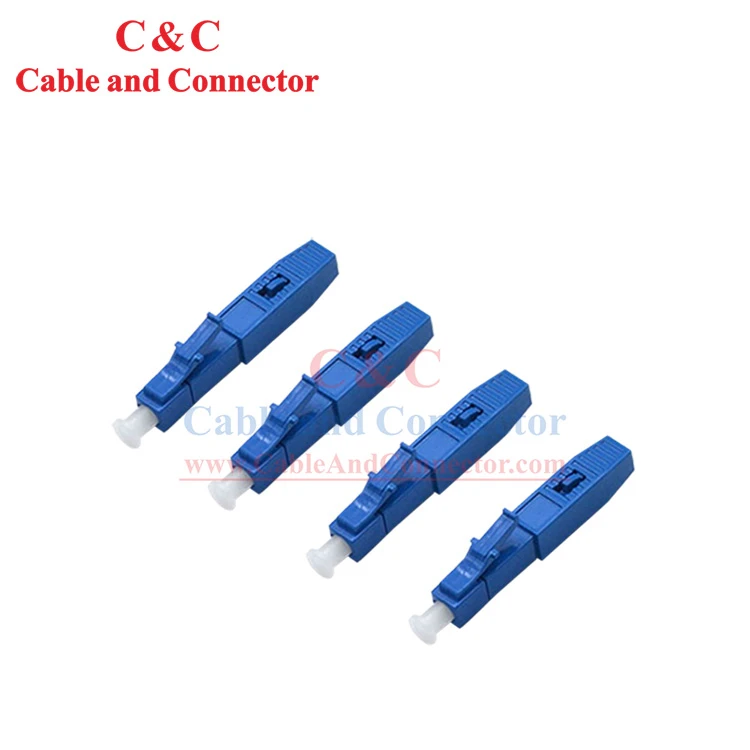

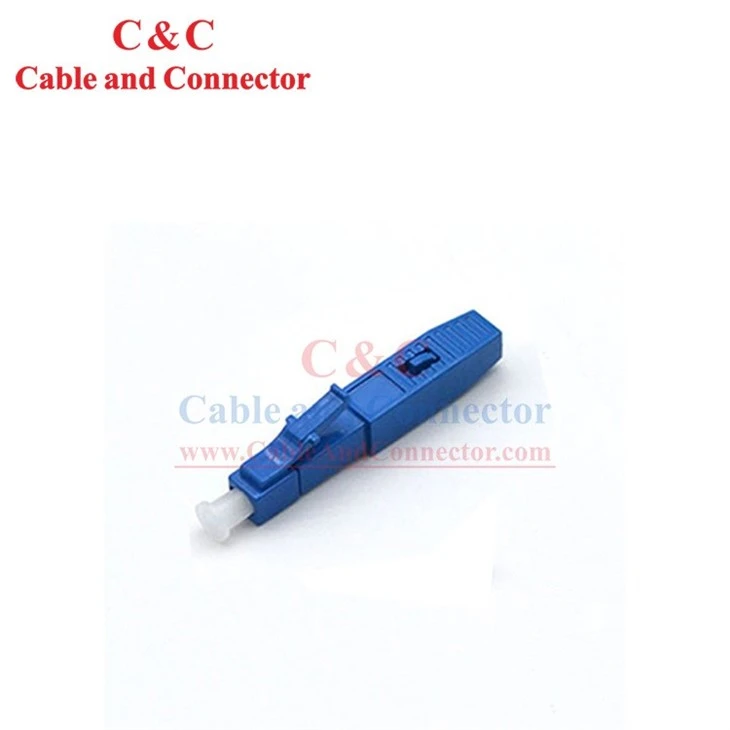

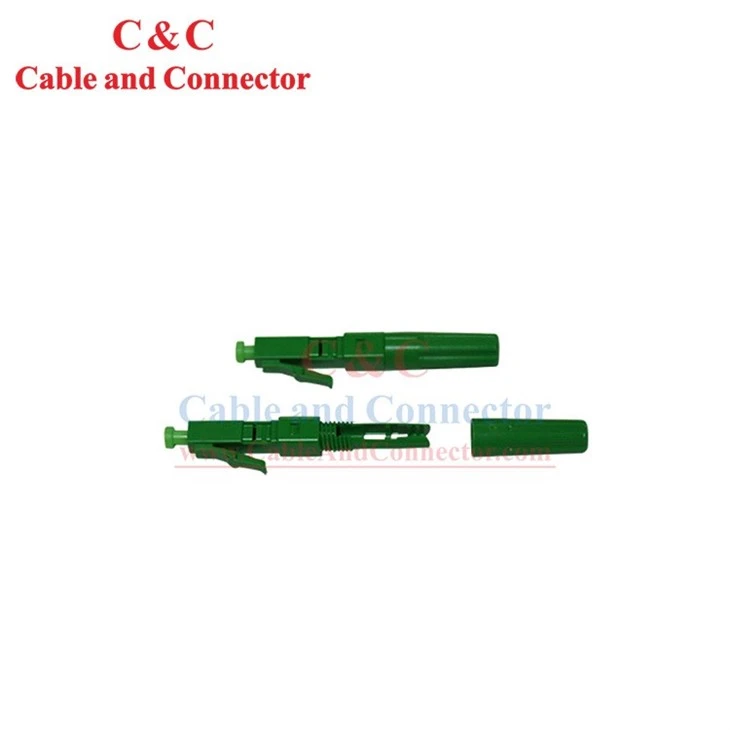

LC UPC Fast Connector
LC UPC Fast Connectors provide a smaller LC interface where higher port density or compact equipment connections are required.
Fiber Optic Quick Connector
Quick connector configurations are designed for field termination where installation speed and simplified fiber connection are important.
Quick Termination Connector
Designed for projects requiring efficient fiber termination without relying on a conventional fusion-splicing workflow.
Optical Performance Buyers Should Compare
For professional procurement, installation speed should never replace optical performance.
The key specifications to compare include:
|
Parameter |
Current Reference Specification |
|
Average Insertion Loss |
≤0.3 dB |
|
Maximum Insertion Loss |
≤0.5 dB |
|
Return Loss |
UPC ≥50 dB |
|
Working Temperature |
-40°C to +85°C |
|
Reuse Times |
≥10 times |
|
Tensile Strength |
≥30 N / 2 min |
|
Service Life |
≥10 years |
Installation Efficiency for Large Projects
The greatest advantage of the quick connector lies in the reduction of installation time and labor costs.
Typical Workflow
Fiber Preparation → Cleaning → Connector Insertion → Mechanical Locking → End-Face Inspection → Optical Testing
Recommended Installation Controls (for mass deployment)
Fiber stripping dimensions, cleaning procedure, insertion method, locking procedure, end-face inspection, optical testing criteria, acceptance limits, and technician training.
Fast Connector Selection by Project Scenario
FTTH Installatio:Particularly suitable for subscriber premises or distribution points. Key considerations: SC APC compatibility, installation speed, low insertion loss, technician efficiency, field repair capability, and connector consistency.
Fiber Distribution Cabinets:For termination points, consider connector interface, port density, installation space, and compatibility with existing equipment. SC and LC configurations available per equipment interface.
Emergency Fiber Repair:When downtime must be minimized, fast termination offers an alternative to transporting specialized splicing equipment to every repair location.
Network Expansion:Suitable for incremental deployment where new fiber connections are added at different project stages.
Temporary Fiber Connections:For temporary infrastructure, events, or short-term deployments, simplified termination reduces installation and removal complexity.
Batch Supply for Distributors & Network Contractors
The procurement of Fast Connector is usually based on the number of projects. The types of orders we can support include:
We support:
Sample Orders
Suitable for testing fiber compatibility, installation procedure and optical performance before project approval.
Trial Orders
Suitable for contractors who need to validate installation efficiency with their field teams.
Bulk Orders
Suitable for FTTH and network deployment projects requiring consistent connector specifications and packaging.
OEM Orders
Suitable for distributors and brands requiring customized packaging, labeling or connector configurations.
Customized solution for rapid connectors
Different network operators and distributors may have specific requirements for connector configuration, packaging, and identification. Customization can be discussed for:
SC/LC interface, APC/UPC/PC configuration, fiber compatibility, connector housing, color, product marking, packaging, labeling, private-label requirements, and project-specific inspection standards.
For customized orders, we recommend: Technical Requirement → Sample → Optical & Mechanical Testing → Customer Approval → Mass Production
To avoid receiving a generic quotation, buyers should provide:
- Connector interface: SC / LC / other
- Polishing type: APC / UPC / PC
- Fiber type: Single-mode / Multimode
- Fiber specification
- Required insertion loss
- Required return loss
- Quantity
- Application
- Packaging requirements
- Destination country
Packaging
- Individual protective bags
- Dust-proof protection for connector end faces
- Inner boxes for SKU separation
- Export-standard cartons
- Bulk packaging for large project orders
- Customized labels and packaging
Shipping
- Sea Freight: Suitable for large-volume orders
- Air Freight: Suitable for samples and urgent orders
- Rail Freight: Available for selected international routes
- Road Freight: Suitable for domestic and regional delivery
Packaging quantity, carton specifications and shipping arrangements can be confirmed according to the order quantity and destination.
