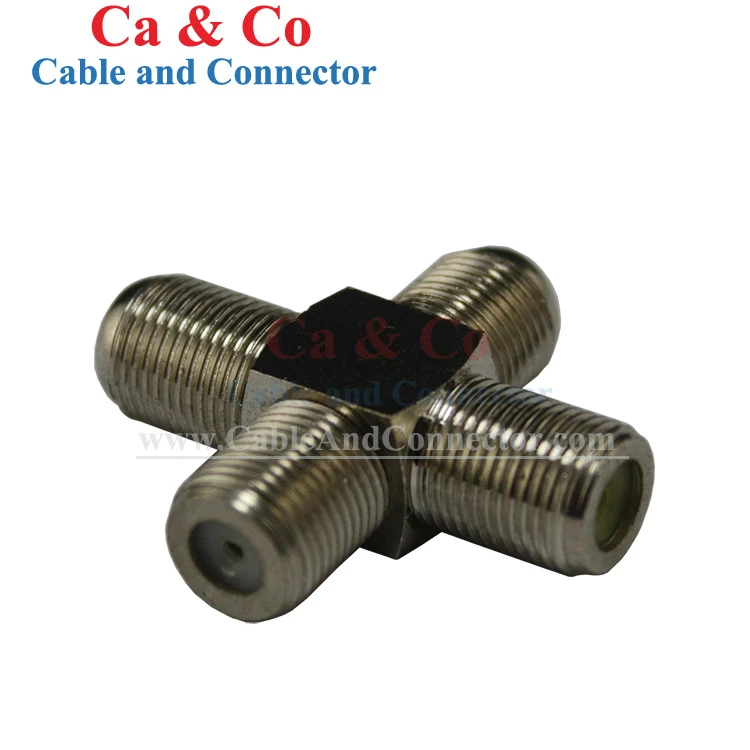

The F Type Adapter Four Female Connector is a four-port cross-type coaxial adapter with F female interfaces for multi-point RF connections, supporting DC–1000 MHz operation in compatible coaxial systems.
Product Specification
|
Parameter |
Specification |
|
Product Type |
F Type Adapter Four Female Connector |
|
Model |
CAC-FF-FF-CR |
|
Configuration |
4 Ports F Female |
|
Structure |
Cross Type |
|
Connector Interface |
F Female × 4 |
|
Frequency Range |
DC–1000 MHz |
|
Working Voltage |
170 V |
|
Withstand Voltage |
500 V |
|
Center Contact Resistance |
≤10 mΩ |
|
Outer Contact Resistance |
≤5 mΩ |
|
Insulation Resistance |
≥1000 MΩ |
|
Return Loss |
≥14 dB |
|
Durability |
≥500 mating cycles |
|
Vibration |
100 m/s² |
|
Operating Temperature |
-40 to +85°C |
Mechanical Interface Compatibility
F Female Ports: All four interfaces are F female, so the mating side must use compatible F male connectors.
Threaded Connection: F-type threaded interfaces provide the mechanical coupling between the adapter and mating coaxial connectors.
Cross Configuration: The four ports are positioned in a cross arrangement, allowing cables to approach the adapter from different directions.
Connector Matching: Use with F-type coaxial components whose interface dimensions and mating thread match the adapter.
Material & Surface Finish
Body Construction: Machined brass or high-grade zinc alloy main body providing structural rigidity and mechanical strength.
Surface Plating: Nickel-plated exterior finish applied across the entire metal body to prevent oxidation, rust, and surface degradation.
Center Contact Material: Phosphor bronze or beryllium copper inner contact clips designed to maintain consistent spring tension and electrical contact pressure.
Dielectric Insulator: High-density PTFE (Teflon) or POM internal dielectric core supporting the center pin and maintaining impedance stability.
Connection & Integration Scenarios
Multi-Cable Connection: Connects multiple F-type coaxial cables or components at a common connection point where four F female interfaces are required.
Antenna Systems: Can be incorporated into compatible antenna and coaxial connection assemblies using F-type interfaces.
TV & Satellite Equipment: Suitable for compatible TV and satellite equipment connections where F-type coaxial interfaces are specified.
Broadband Equipment: Can be used with compatible broadband devices and coaxial accessories using F-type connections.
Dimensional & Installation Information
Installation Clearance: Leave sufficient working space around the adapter for attaching and removing F-type mating connectors.
Cable Routing: Allow clearance around the four ports so connected cables can be routed without obstructing adjacent connections.
Dimensional Drawing: A product dimensional drawing can be provided for equipment assemblies where the adapter must fit within a defined mechanical space.
Fixed Assemblies: For panel, enclosure, or equipment integration, the adapter dimensions and port positions should be matched to the available installation space before production.
