Fiber Wire Cable is a fiber optic cable used for high-speed optical communication and network cabling. Its cable structure can be configured with different fiber types, fiber counts, strength members and outer jackets according to the installation environment and application requirements.
Technical Specifications
|
Item |
Specification |
|
Product Type |
ADSS Fiber Wire Cable |
|
Model |
CC-ADSS-50M6/12/24/36/48F-SDDS |
|
Fiber Count |
4/6/8/12/24/36/48/60/72/96/144F optional |
|
Available Span |
50/60/80/100/120/200/300/400/600 m |
|
Fiber Structure |
Loose Tube |
|
Loose Tube Material |
PBT |
|
Central Strength Member |
FRP |
|
Outer Sheath |
PE |
|
Standard Sheath Color |
Black |
|
Fiber per Tube |
6F or 12F configurations |
|
Cable Structure |
1+6 |
|
Cable Diameter |
10.6 / 11.2 mm |
|
Cable Weight |
80 / 90 kg/km |
|
MAT |
2000 / 2500 N |
Values shown in the supplied product data correspond to the listed cable configurations and should be matched with the selected fiber count before quotation.
Mechanical & Environmental Performance
All-Dielectric Construction: No metallic messenger is used; FRP and aramid yarn provide structural reinforcement and electrical insulation.
Aerial Span Capability: Available span options range from 50 m to 600 m, including 50, 60, 80, 100, 120, 200, 300, 400 and 600 m.
Tensile Design: Maximum allowable tension depends on the selected span and installation conditions and should be confirmed before selection.
Outdoor Conditions: Cable selection can be evaluated against project temperature, wind speed and ice thickness requirements.

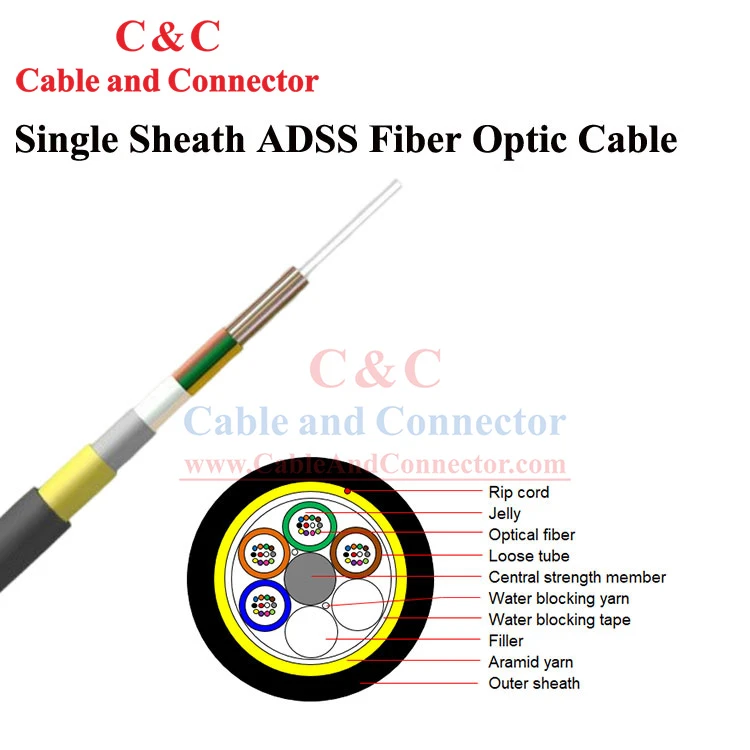

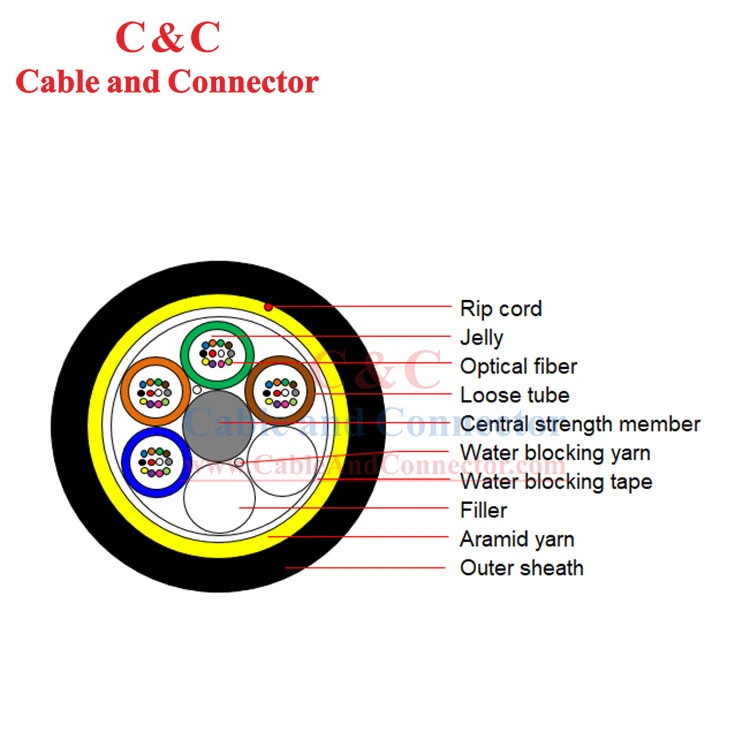

Cable Structure
|
Component |
Specification / Function |
|
Optical Fiber |
Single-mode or multimode fiber |
|
Buffer Structure |
Loose tube / tight-buffered |
|
Strength Member |
FRP, aramid yarn or specified material |
|
Water Protection |
Water-blocking yarn/tape or filling material |
|
Outer Jacket |
PE, PVC, LSZH or specified material |
Customization & Bulk Supply
Fiber Count Selection: Fiber counts are available from 4F to 144F, including 4/6/8/12/24/36/48/60/72/96/144F configurations according to the required network capacity.
Span Configuration: Cable selection can be matched to required aerial spans from 50 m to 600 m, with different structural parameters available for different span requirements.
Project-Based Cable Design: For quotation and configuration, buyers can provide installation span, voltage grade, temperature range, maximum wind speed and ice thickness so the cable structure can be evaluated against the project conditions.
Fiber & Tube Configuration: Available structures include 6F or 12F fibers per loose tube, with 1+6 cable construction used in the listed configurations.
Quality Inspection & Testing
Fiber Identification: Fibers in each loose tube follow a standard color sequence: Blue, Orange, Green, Brown, Gray, White, Red, Black, Yellow, Purple, Pink and Aqua.
Loose-Tube Identification: Loose tubes are identified by color, starting with Blue, Orange, Green and Brown.
Dimensional Inspection: Cable diameter and weight are checked against specified values, with tolerances of ±5% for diameter and ±10% for weight.
Cable Parameter Verification: Fiber count, cable structure, tube quantity, fiber allocation, FRP member and sheath material are verified against the specified configuration before shipment.
FAQ
Q: What information is needed to confirm the correct cable configuration?
A: Please provide the project requirements, installation conditions and required quantity for configuration review.
Q: Can you provide a quotation based on a project specification?
A: Yes. Project-specific requirements can be reviewed and matched with the available cable configuration before quotation.
Q: Is a sample available for pre-order evaluation?
A: Sample availability can be confirmed according to the required configuration and evaluation needs.
Q: Can you support bulk orders with different cable configurations?
A: Different configurations can be discussed within the same project according to the required fiber capacity and installation requirements.
Q: Can production follow a buyer's technical specification?
A: Buyer-provided technical requirements can be reviewed against the available manufacturing configuration before production.
Q: What should be confirmed before placing a bulk order?
A: The buyer should confirm the cable configuration, required quantity, delivery length, packaging and applicable project requirements.
